GRIDFLEX
Slab Formwork

GRIDFLEX Grid Element Slab Formwork

GRIDFLEX is used in the construction of housing and multi-storey buildings. The systematic work procedure involving only one standard element and two filler elements makes the job easy. The shuttering process is particularly safe because the lightweight elements are swivelled upwards from the erection area. Filler areas can be closed quickly by simply changing the direction of the elements and using lateral and longitudinal infills.

Your key to success

A flexible system with safely accessible grid elements.

Safe shuttering

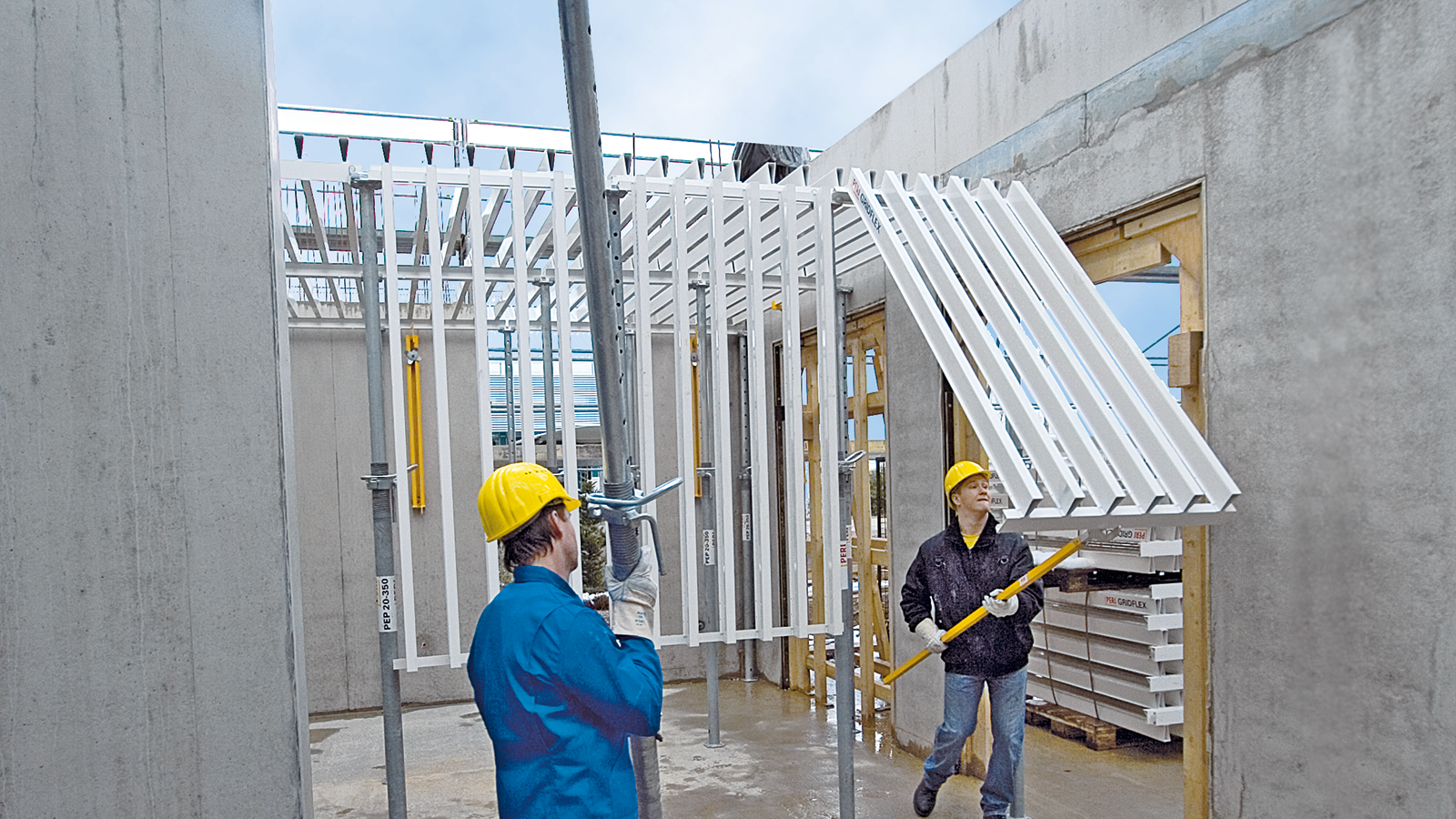

Safe shuttering procedure by swivelling the panels upwards with site personnel positioned on the slab below.

Safe shuttering procedure by swivelling the panels upwards with site personnel positioned on the slab below.
Safe shuttering procedure by swivelling the panels upwards with site personnel positioned on the slab below.
Simple operations

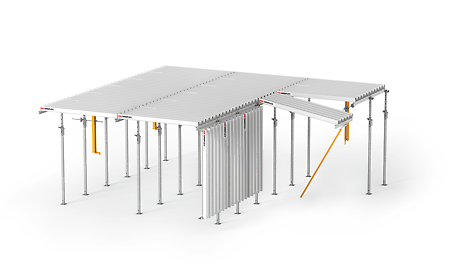

Simple working operations through a systematic assembly sequence with only one standard and two compensation panels.

Simple working operations through a systematic assembly sequence with only one standard and two compensation panels.
Simple working operations through a systematic assembly sequence with only one standard and two compensation panels.
Effortless change of direction of the panels

Filler areas are quickly closed through a simple change of direction of the panels along with the use of transverse and longitudinal infills.

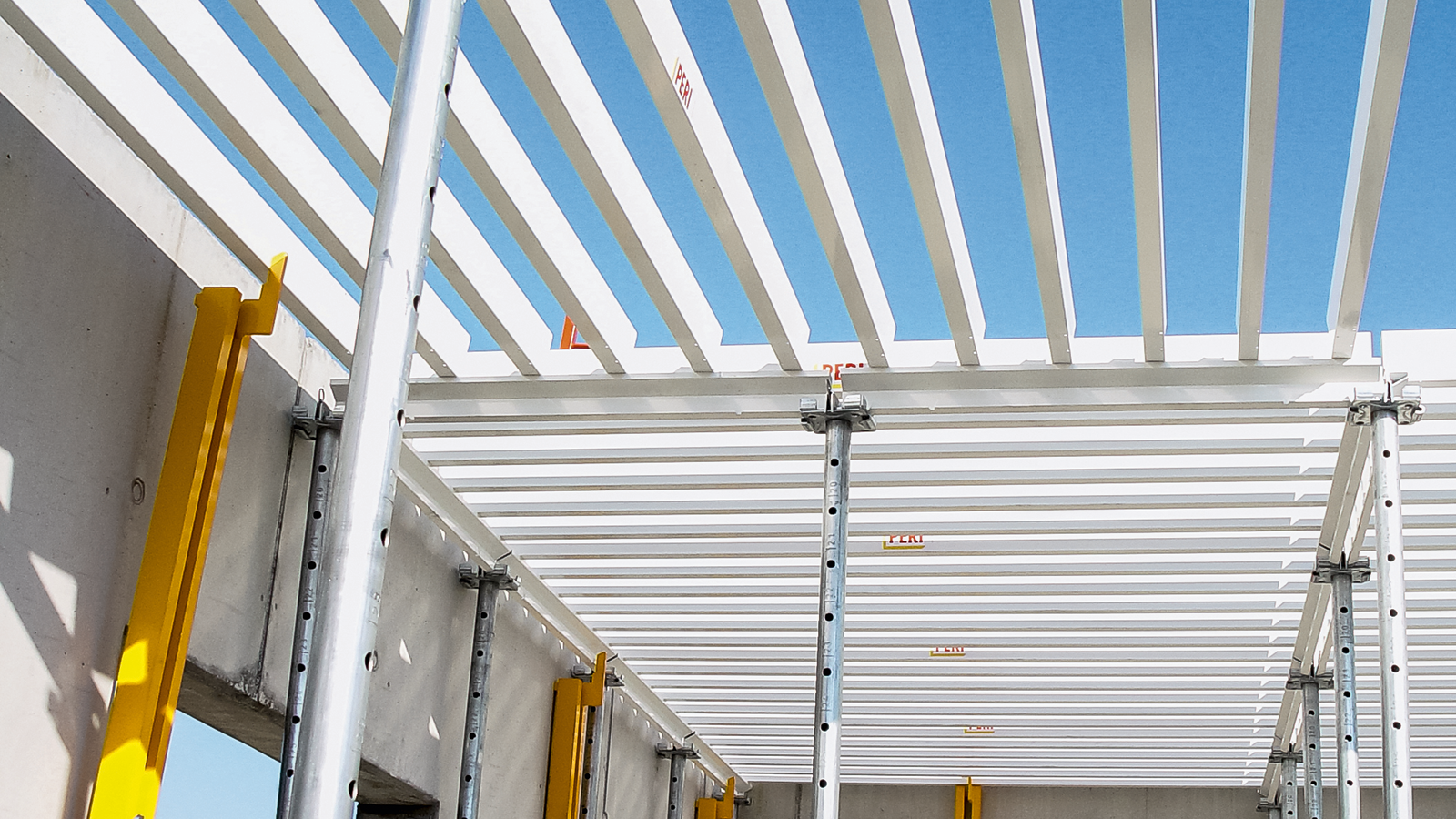

GRIDFLEX in action
GRIDFLEX in action
Ergonomic assembly

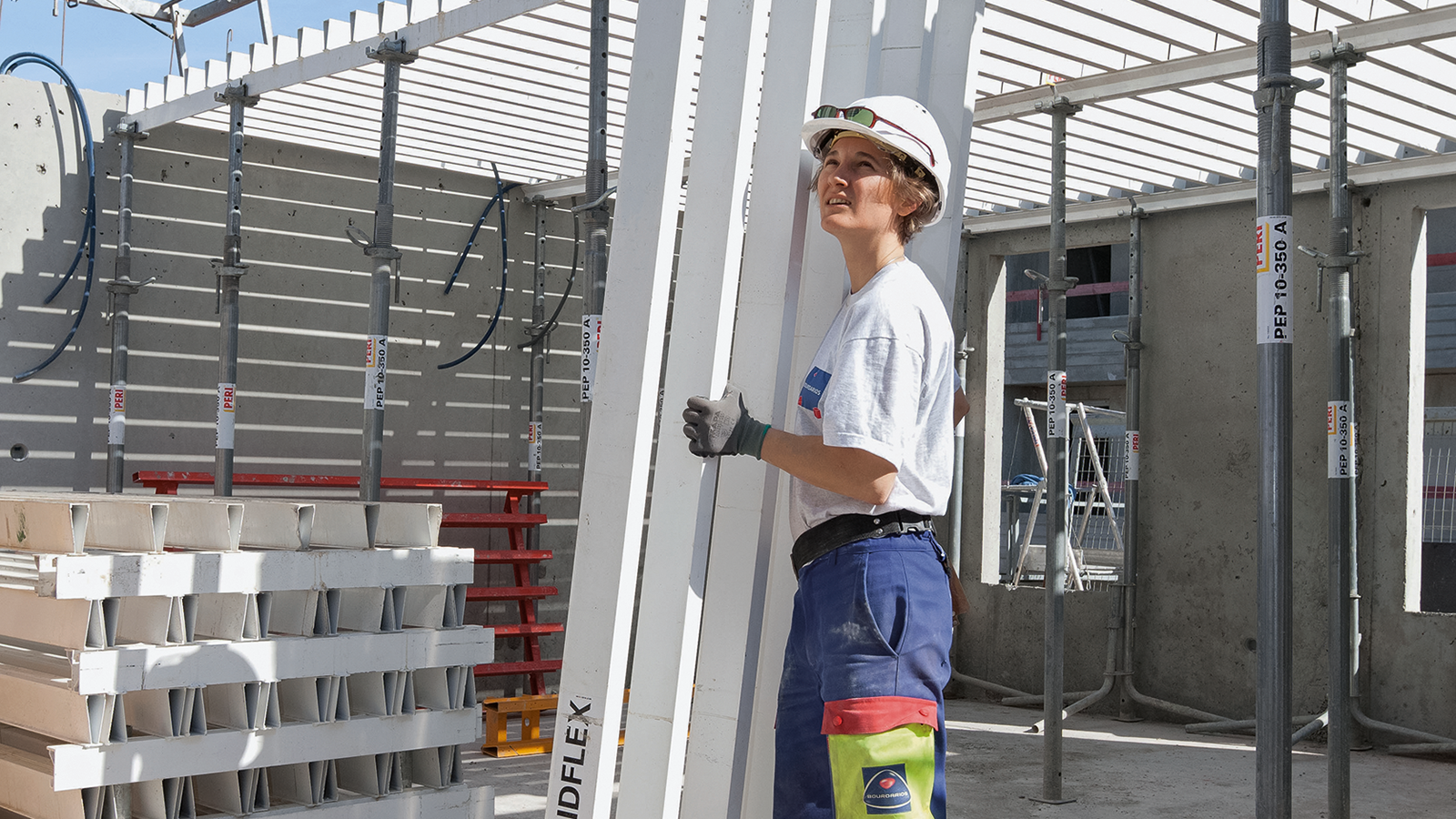

GRIDFLEX system components are particularly light and can be easily moved by hand. The 200 cm x 100 cm standard panel only weighs 20 kg/m.

GRIDFLEX system components are particularly light and can be easily moved by hand. The 200 cm x 100 cm standard panel only weighs 20 kg/m.
GRIDFLEX system components are particularly light and can be easily moved by hand. The 200 cm x 100 cm standard panel only weighs 20 kg/m.

GRIDFLEX video

You can find even more information about GRIDFLEX in the video:

Download

Experience GRIDFLEX

Would you like to use the GRIDFLEX for your next construction project? Or do you need further information? Then select your country from the drop-down menu below. You can find your personal contact via the websites of our subsidiaries - in over 60 countries around the world.
