The production pallet for the concrete paving industry

PERI Pave – the multitalent for the concrete block industry

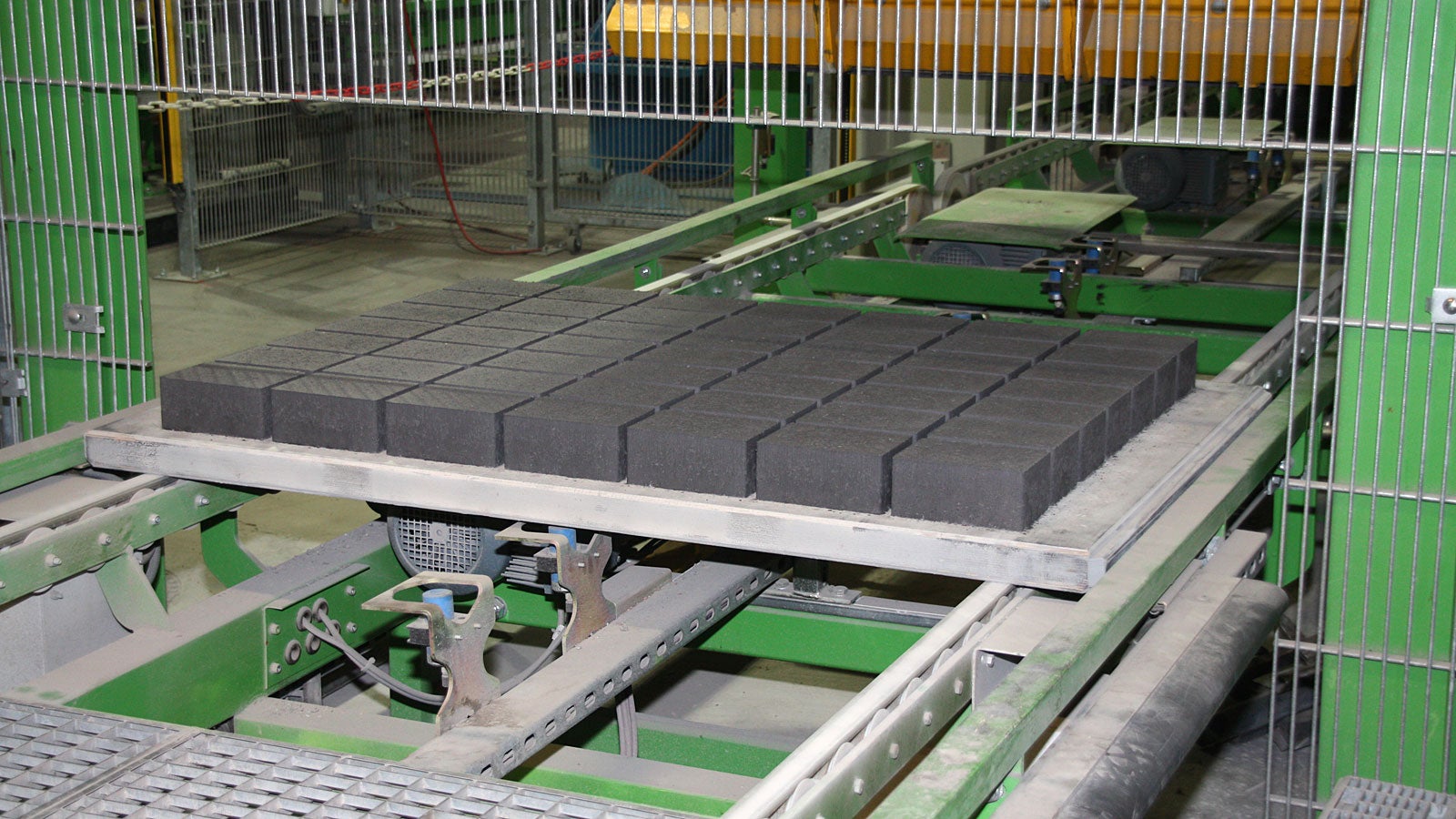

When it comes to high-performance and durable production boards for concrete block production, PERI has been ahead of the field since the 1990s. Around the globe, PERI Pave ensures reliably good production results. Continuously further developed and optimized, the current generation of PERI Pave has a release effect already integrated in the coating. Thanks to innovative aggregates in the plastic coating, concrete and stone sealing residues on the pallet are significantly reduced. In addition to the highly resistant coating, the production board with multiplex hardwood core also impresses with its outstanding load-bearing capacity, high surface hardness and abrasion resistance as well as uniform vibration behaviour with a low own weight.

With these properties, PERI Pave is ideally suited for heavy concrete products and products with high demands on flatness. Pave is also the right solution for applications with high humidity – for example in air-conditioned chambers or with washed products.

Interested in using PERI Pave for your next project?

Contact our team of experts.

Product Information

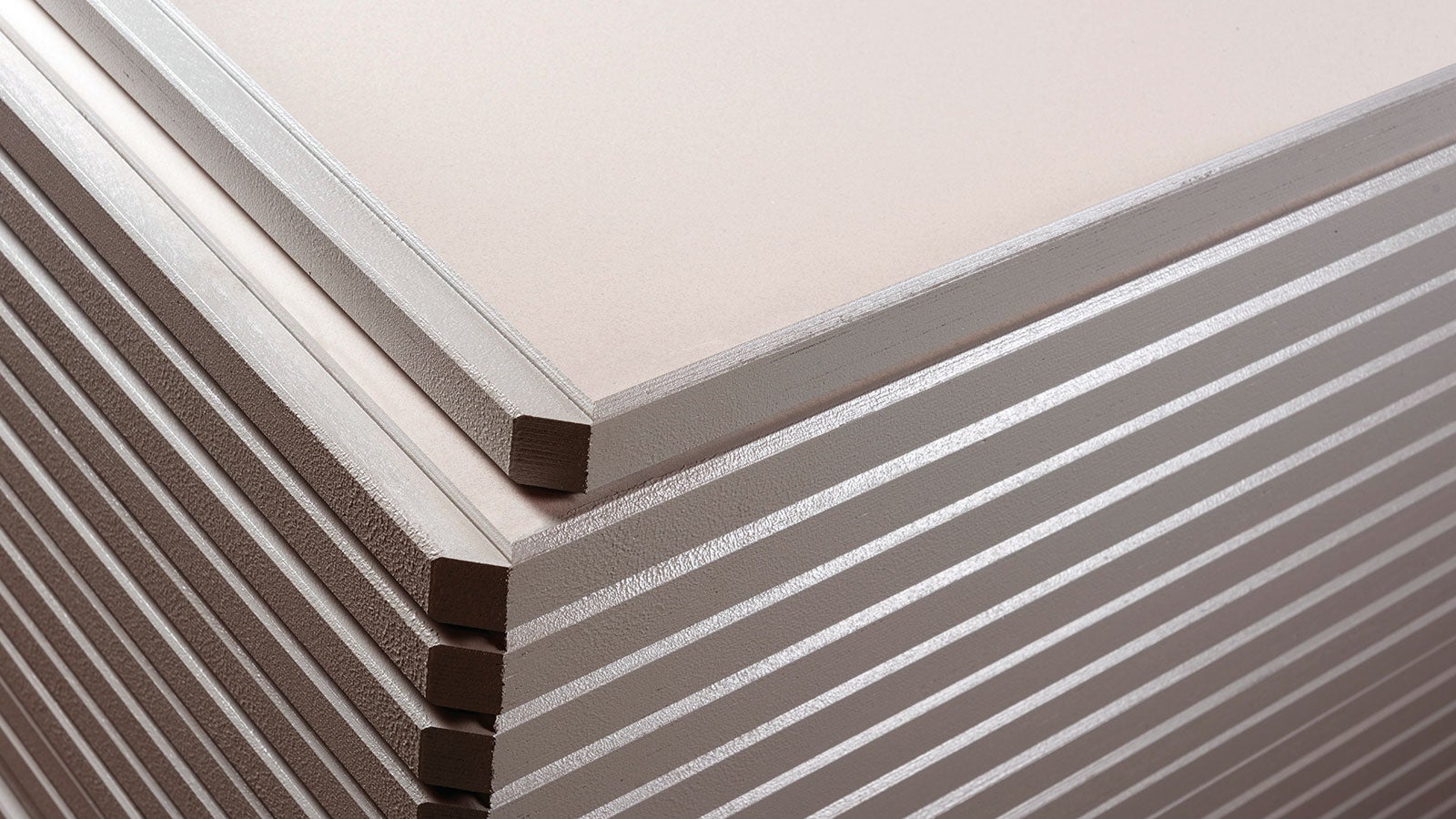

The structure of PERI Pave

The multiplex core is produced through the cross-bonding of high-quality hardwood veneers from sustainably managed forests. The polypropylene coating, which has been especially developed for the utilisation in concrete block manufacturing plants, offers particularly high impact and abrasion resistance and thus promotes the longevity of the PERI Pave production pallets.

The advantages of PERI Pave

  • Excellent compaction characteristics
    The extremely homogeneous core structure PERI Pave enables uniformly transmission of energy within the production pallet and thus the production of highly compacted concrete blocks.

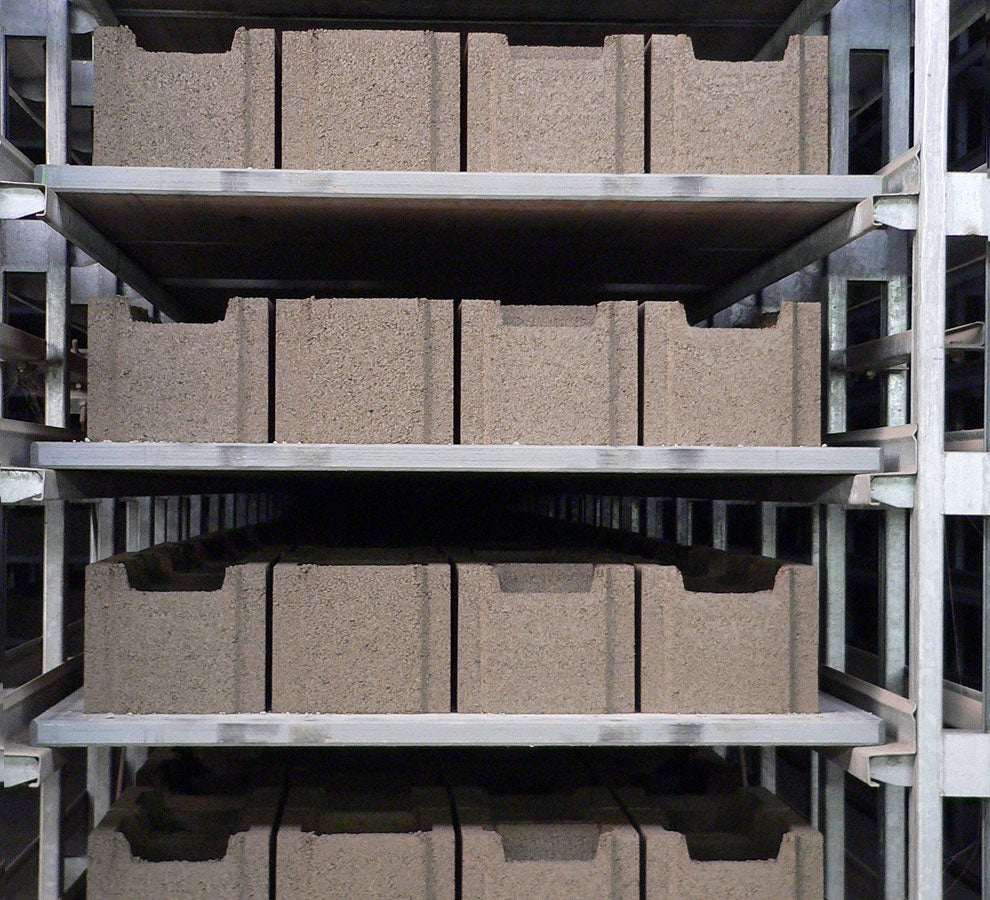

  • Minimal deflection
    PERI Pave exhibits only minimal deflection due to its extremely strong core. The panel thickness is individually adapted to the production conditions in the factory and the technical requirements of the base panel. In most cases, a reduction of the panel thickness is possible, which leads to considerable savings potentials.
  • Highly resistant surface

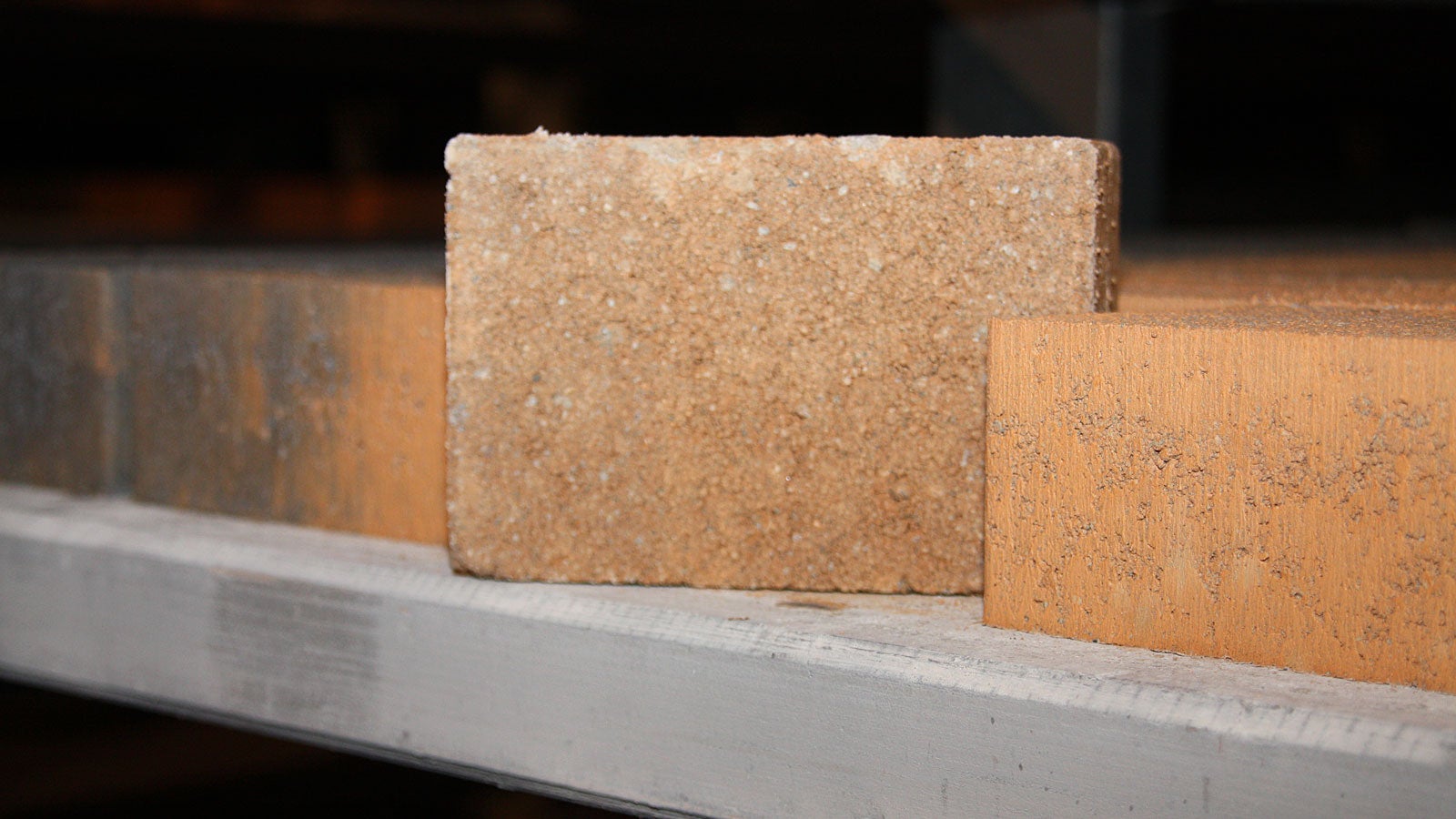

    The high-tech polymer coating is highly resistant to abrasion, the effects of force and chemicals as well as being flexible to protect the wooden core from mechanical damage. A closed and even surface facilitates a smooth backside of the stones. Thanks to the integrated separating effect, PERI Pave is even more valuable and saves material and production costs.
  • Durability
    PERI Pave has been proven to be suitable for long-term use. The technical values such as vibration transmission and deflection remain constant.

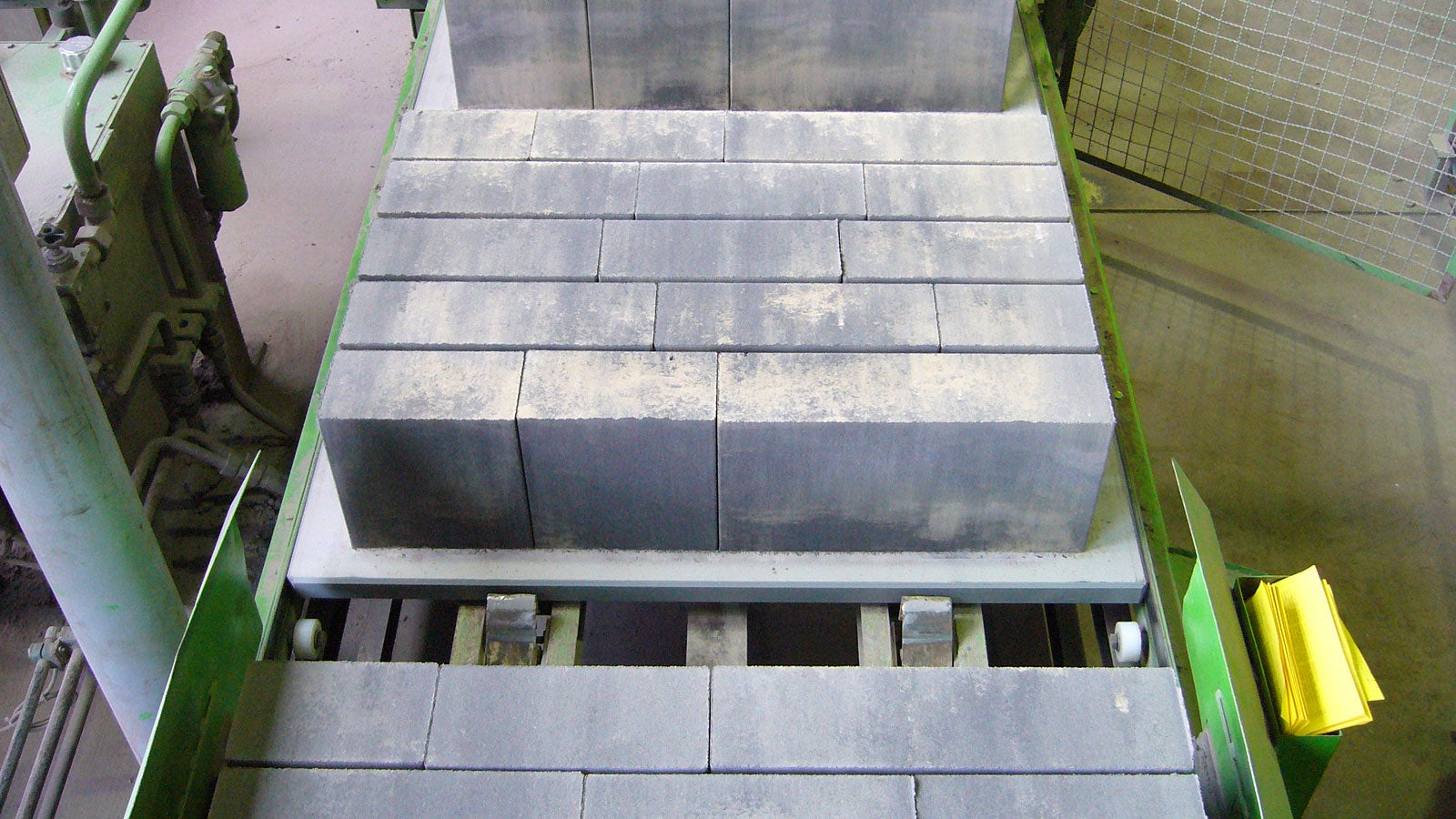

  • Weight saving
    The low own weight of PERI Pave leads to energy savings in the production process, reduced wear and increased work safety. In addition, overloading of the rack systems is avoided.
  • Low maintainance requirements
    With PERI Pave, you are choosing a product that requires no special care and maintenance. For the most part, the base plate does not need to be sprayed and the use of release agents is – depending on the concrete mix – generally not necessary.

Technical Data

  • Panel thickness: 24 – 53 mm
  • Max. size: 1,500 x 3,600 mm
  • Weight: 740 kg/m³ (at approx. 12% wood moisture)
  • Gluing of the veneers and the coating in accordance to DIN EN 314-2, water and boil proof
  • Edges sealed twice all round with permeable acrylic lacquer
  • Tolerances in accordance to DIN EN 315
  • Suitable for every machine type thanks to customised CNC processing of the panel edges

Questions? We will be happy to answer them!

If you would like to find out more about the technical details of PERI Pave, we will be happy to advise you.

Add Ons

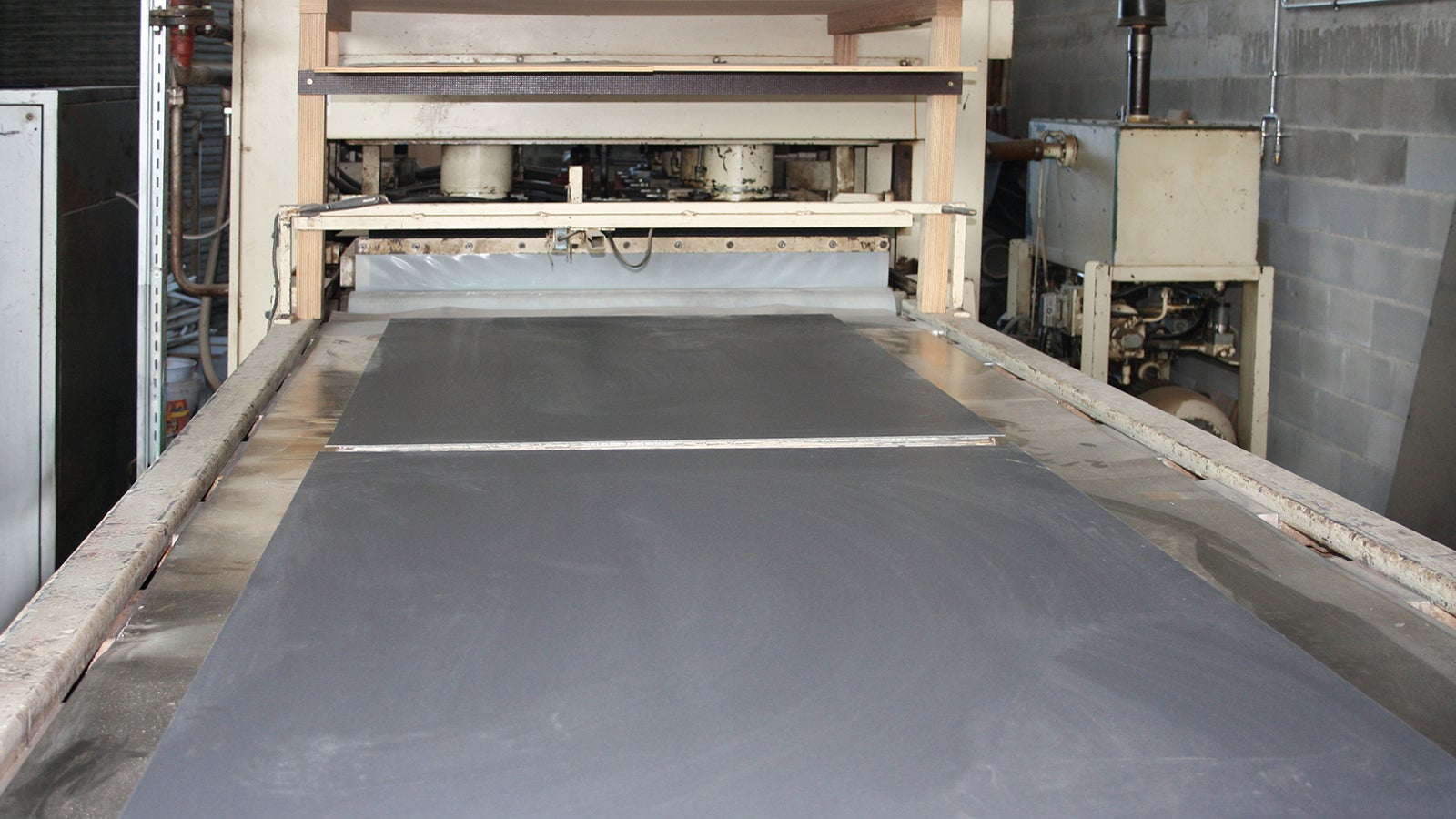

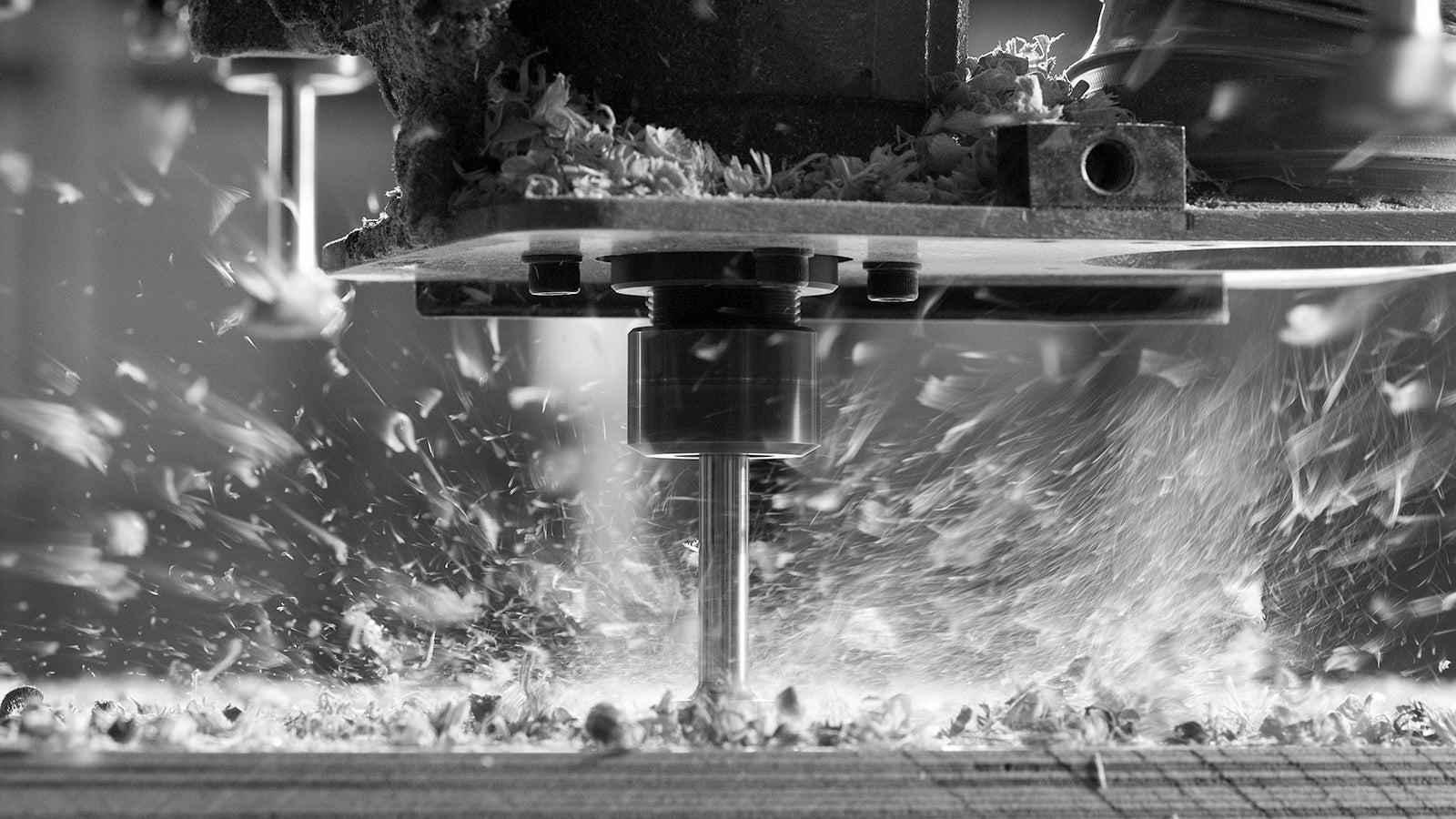

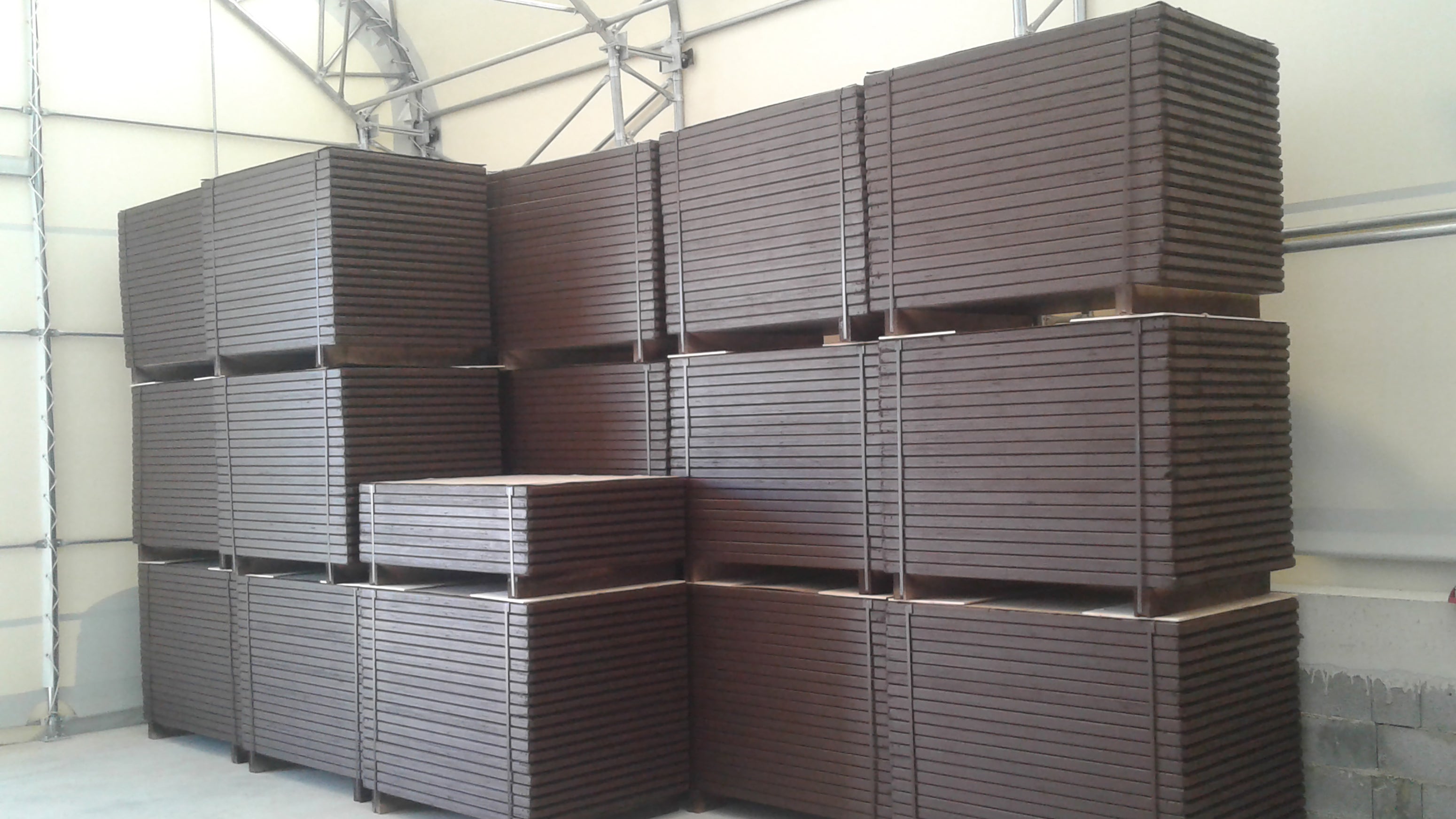

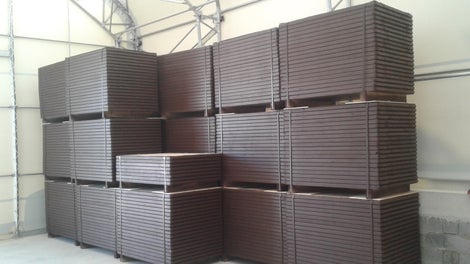

PERI Pave ReLife

With PERI Pave ReLife, the symbiosis of sustainability and cost-effectiveness succeeds. By professionally recoating the surface, the production boards are given an additional service life: resource-saving, cost-effective and still at a high-quality level.

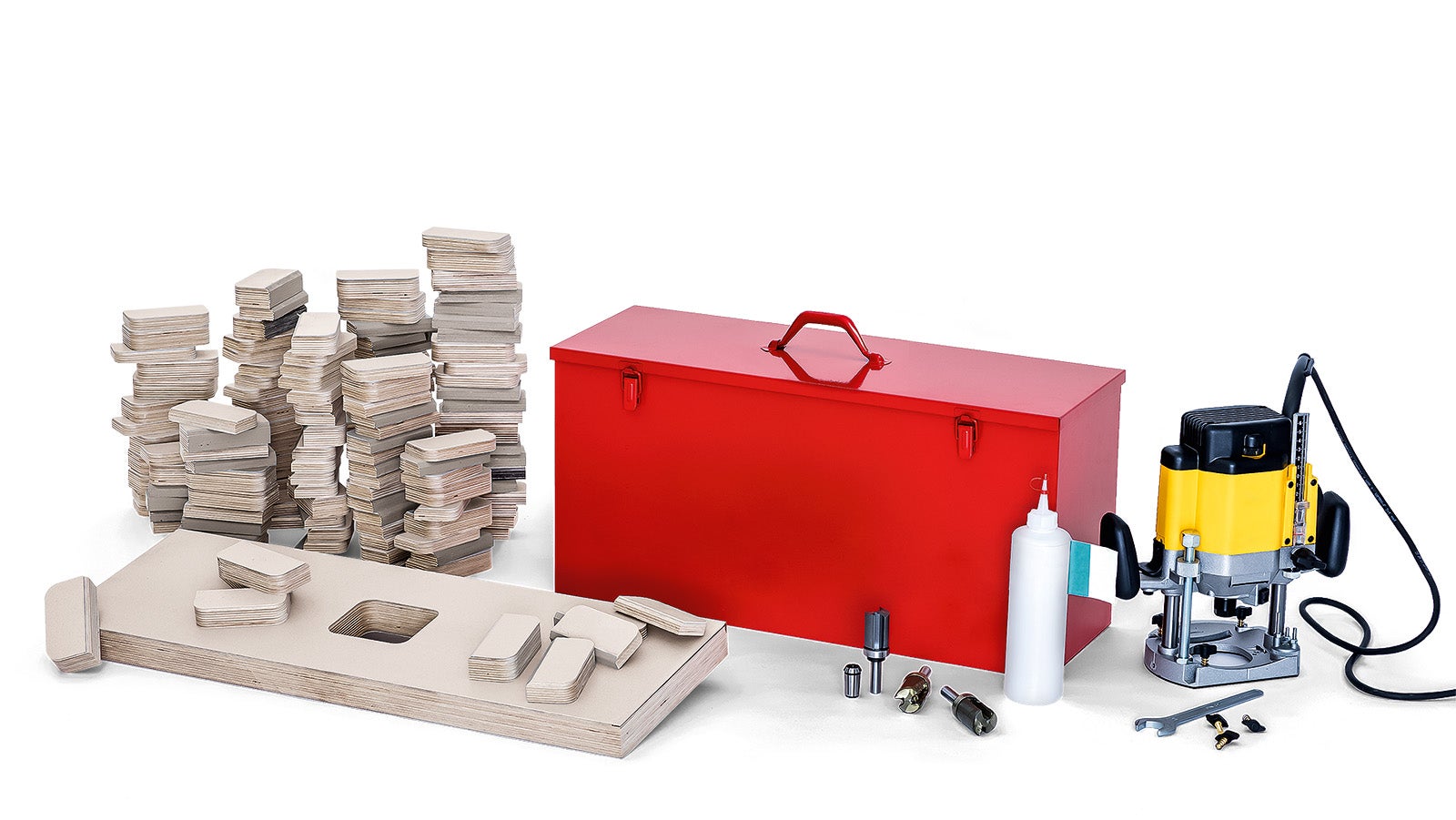

PERI Pave Repair

Occasional mechanical damage to the panel surface can be repaired quickly and easily with the repair kit.

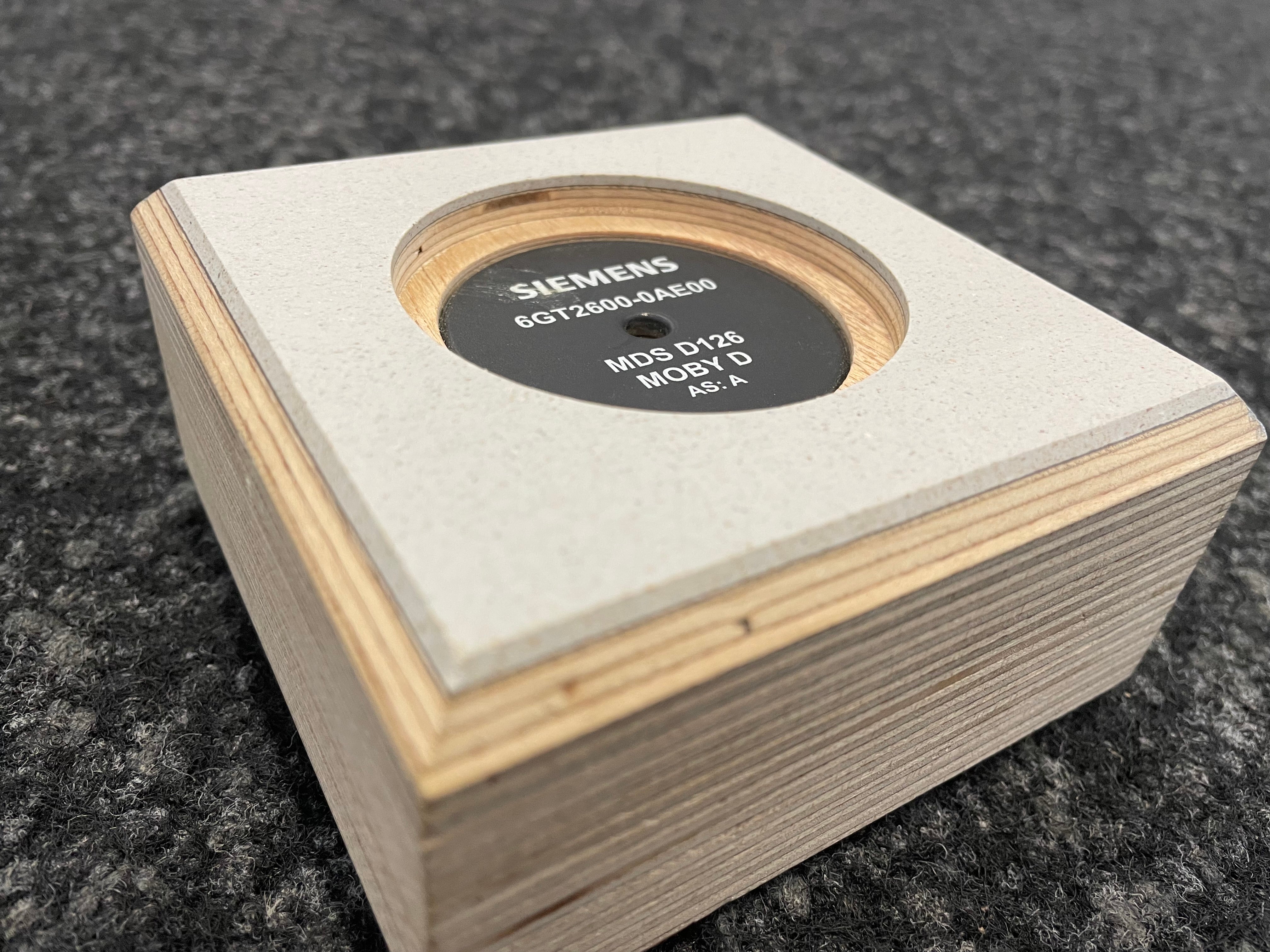

PERI Pave IT

Production pallets run through the entire production cycle and accompany the concrete block throughout the entire production process. They are therefore ideal for transparent and traceable quality monitoring in the factory. The individual pallets can be identified with built-in RFID chips. This means that production data and quality features can be clearly assigned to the production boards and ultimately to the concrete block products. Quality deviations are identified immediately, which reduces the number of claims – a continuous quality management system.

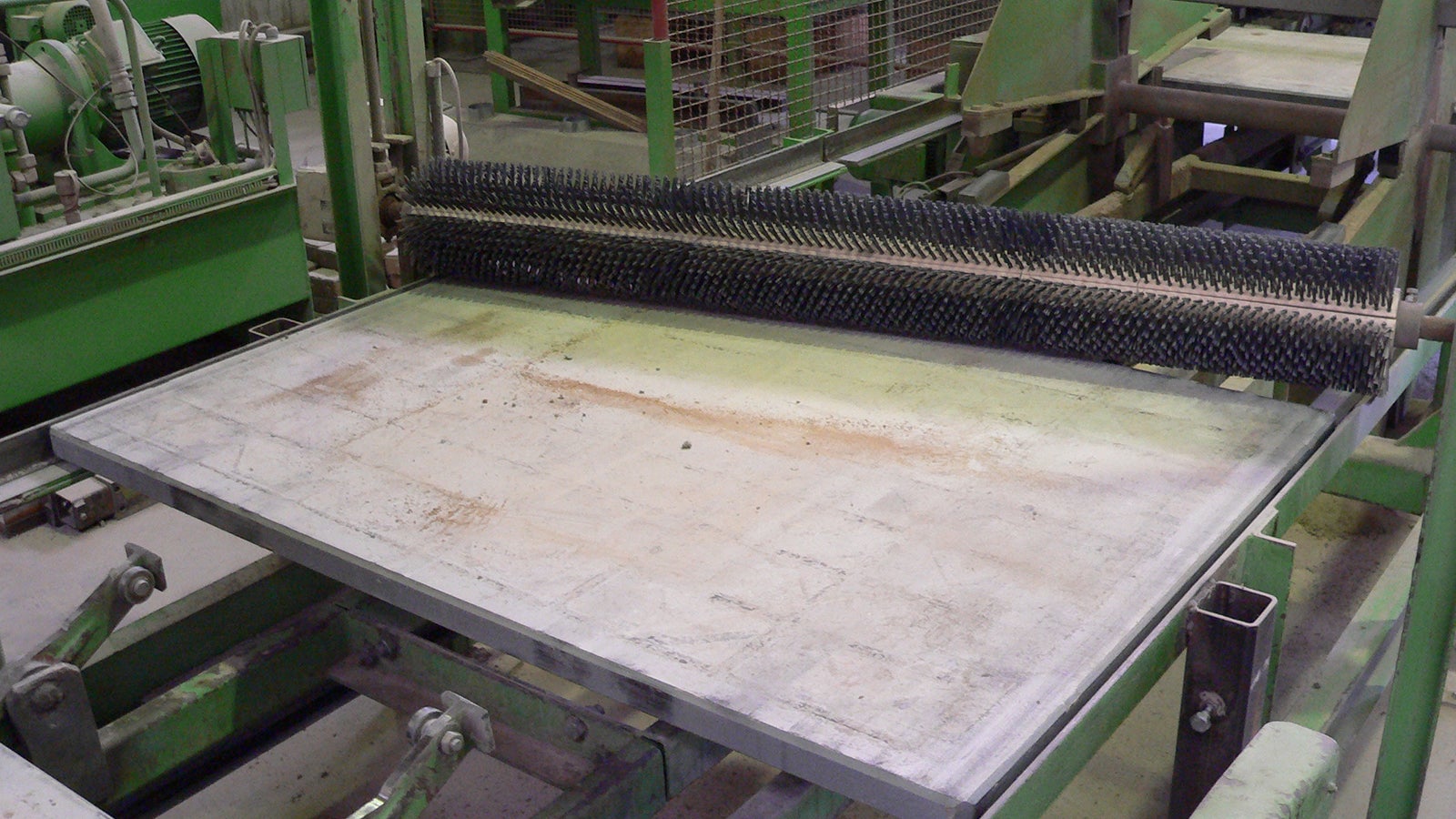

PERI Pave Brush

Cleaning and care extend the service life of the production boards. Thanks to the unique coating with integrated separating effect, the effort required remains low. PERI recommends brushes with plastic bristles to remove any concrete and acrylate residues quickly and thoroughly.



Click here to download the brochure

Find out more about PERI Pave in our brochure

Download 1.5 MB

Sustainability

  • PERI Pave is essentially a sustainable product. The birch wood used is robust and particularly durable. It comes from certified cultivation areas. In addition, production is energy-efficient and any waste products are completely recycled. In addition, the repair enables an even longer service life.
    Many factors for being a sustainable product
    PERI Pave is essentially a sustainable product. The birch wood used is robust and particularly durable. It comes from certified cultivation areas. In addition, production is energy-efficient and any waste products are completely recycled. In addition, the repair enables an even longer service life.
